GL内循环滚珠丝杠
内循环滚珠丝杠
刚性好、抗碰撞
定位精度更高
滚珠丝杠系列代号滚珠丝杠尺寸滚珠直径循环圈数螺母安装尺寸小圆螺母GB/T810-88平 键GB/T1096-79额定载荷(N)接触刚度Ka(N/μm)中径外径底径导程D1DL1L2L3BT动载...
60秒在线服务 30分钟技术答复 24小时技术方案

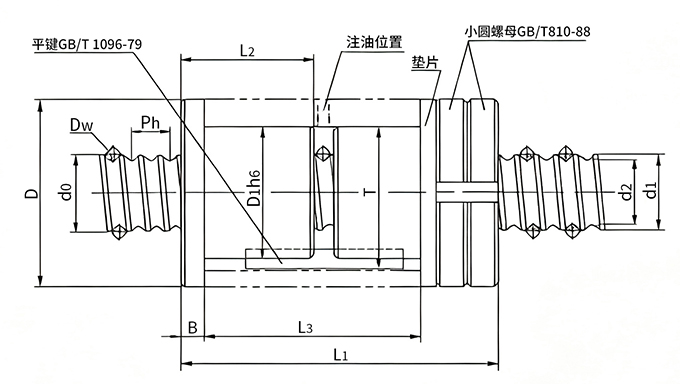

| 代号 | 尺寸 | 滚珠直径 | 循环圈数 | 螺母安装尺寸 | 小圆螺母 GB/T810-88 | 平 键 GB/T1096-79 | 额定载荷(N) | 接触刚度 Ka(N/μm) | ||||||||||
| 中径 | 外径 | 底径 | 导程 | D1 | D | L1 | L2 | L3 | B | T | 动载 | 静载 | ||||||
| d。 | d1 | d2 | Ph | Dw | Ca | Cao | ||||||||||||
| 2004LH- 3 | 20 | 19.3 | 17.3 | 4 | 2.381 | 3 | 30 | 45 | 70 | 28 | 44 | 6 | 32 | M30×1.5 | 4×4×30 | 5051 | 11779 | 368 |
| 2004-3 | 20 | 19.3 | 17.3 | 4 | 2.381 | 3 | 30 | 45 | 70 | 28 | 44 | 6 | 32 | M30X1.5 | 4×4×30 | 5051 | 11779 | 368 |
| 2005-3 | 20 | 19.2 | 16.3 | 5 | 3.175 | 3 | 34 | 48 | 81 | 34 | 55 | 6 | 36.5 | M33X1.5 | 5X5×40 | 7562 | 15650 | 386 |
| 2505-3 | 25 | 24.2 | 21.3 | 5 | 3.175 | 3 | 42 | 58 | 84 | 34.5 | 55 | 8 | 44.5 | M42X1.5 | 5×5×40 | 9069 | 22108 | 506 |
| 2506-3 | 25 | 24.2 | 21.3 | 6 | 3.175 | 3 | 45 | 62 | 95 | 41 | 66 | 8 | 48 | M45X1.5 | 6×6×45 | 9059 | 22089 | 508 |
| 3205-3 | 32 | 31.2 | 28.3 | 5 | 3.175 | 3 | 50 | 68 | 88 | 37 | 55 | 8 | 52.5 | M48X1.5 | 5X5X40 | 10381 | 29707 | 622 |
| 3206-3 | 32 | 31 | 27.4 | 6 | 3.969 | 3 | 50 | 68 | 99 | 41 | 66 | 8 | 53 | M48X1.5 | 6X6X45 | 13913 | 36232 | 638 |
| 4006-3 | 40 | 39 | 35.4 | 6 | 3.969 | 3 | 60 | 80 | 101 | 42 | 66 | 10 | 63 | M60×2 | 6X6×45 | 15516 | 46430 | 758 |
| 4008-3 | 40 | 38.5 | 34.5 | 8 | 4.763 | 3 | 60 | 80 | 119 | 52 | 84 | 10 | 63 | M60×2 | 8X7 X55 | 19713 | 54607 | 786 |
| 4010-3 | 40 | 38.2 | 32.7 | 10 | 6.35 | 3 | 65 | 85 | 140 | 62 | 102 | 13 | 68 | M64×2 | 6X6×60 | 27490 | 66791 | 780 |
| 5006-4 | 50 | 49 | 45.4 | 6 | 3.969 | 4 | 72 | 95 | 117 | 50 | 78 | 10 | 75.5 | M72×2 | 8×7×55 | 22194 | 80028 | 1184 |
| 5008-4 | 50 | 48.5 | 44.5 | 8 | 4.763 | 4 | 75 | 95 | 144 | 64 | 102 | 12 | 79 | M72X2 | 12X 8X 80 | 28592 | 95605 | 1264 |
| 5010-4 | 50 | 48.2 | 42.7 | 10 | 6.35 | 4 | 75 | 95 | 167 | 76 | 124 | 13 | 79 | M72X2 | 12X8X100 | 40446 | 117931 | 1258 |
| 5012-4 | 50 | 49 | 41.8 | 12 | 7.144 | 4 | 75 | 95 | 191 | 89 | 146 | 15 | 79 | M72×2 | 12X8X120 | 47876 | 134407 | 1308 |
| 6310-4 | 63 | 61.2 | 55.7 | 10 | 6.35 | 4 | 90 | 115 | 168 | 77 | 124 | 14 | 95 | M90×2 | 16X10 X100 | 46474 | 158387 | 1542 |
| 6312-4 | 63 | 61 | 54.8 | 12 | 7.144 | 4 | 90 | 115 | 195 | 90 | 150 | 15 | 95 | M90×2 | 16X10 X100 | 48999 | 154538 | 1446 |
| 8010-4 | 80 | 78.1 | 72.7 | 10 | 6.35 | 4 | 110 | 135 | 180 | 79 | 127 | 15 | 116 | M110X2 | 20×12 X100 | 51708 | 204840 | 1822 |
| 8012-4 | 80 | 77.9 | 71.8 | 12 | 7.144 | 4 | 110 | 135 | 204 | 91 | 150 | 16 | 116 | M110×2 | 20×12 X100 | 60923 | 229806 | 1890 |
